- Model

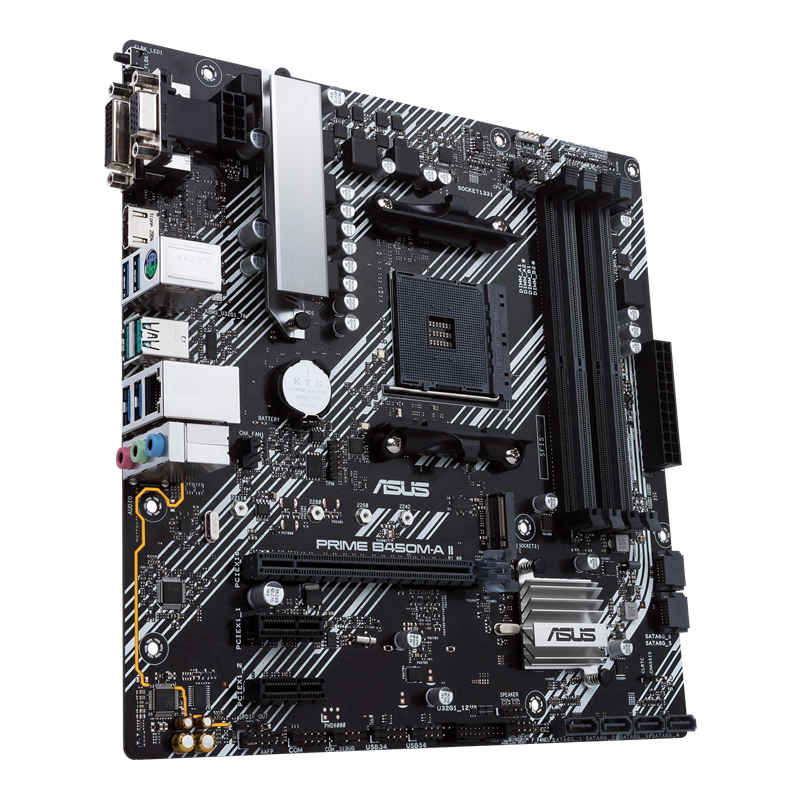

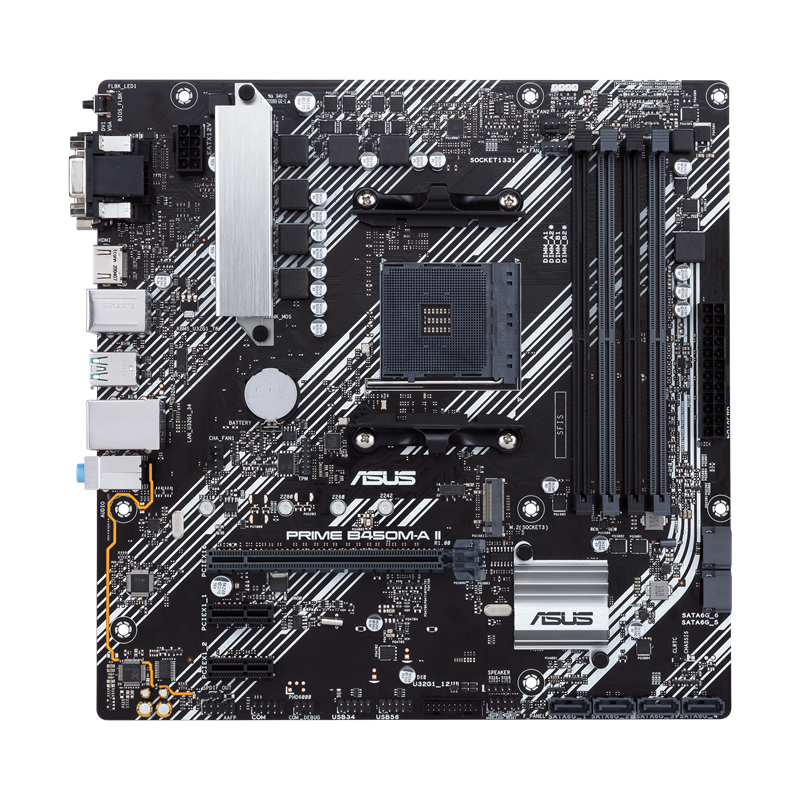

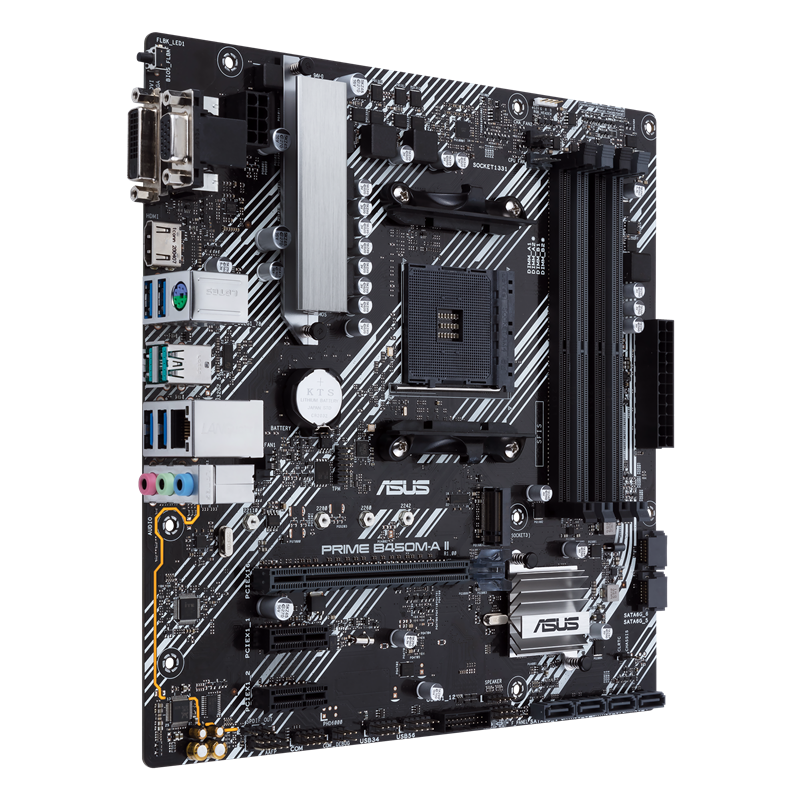

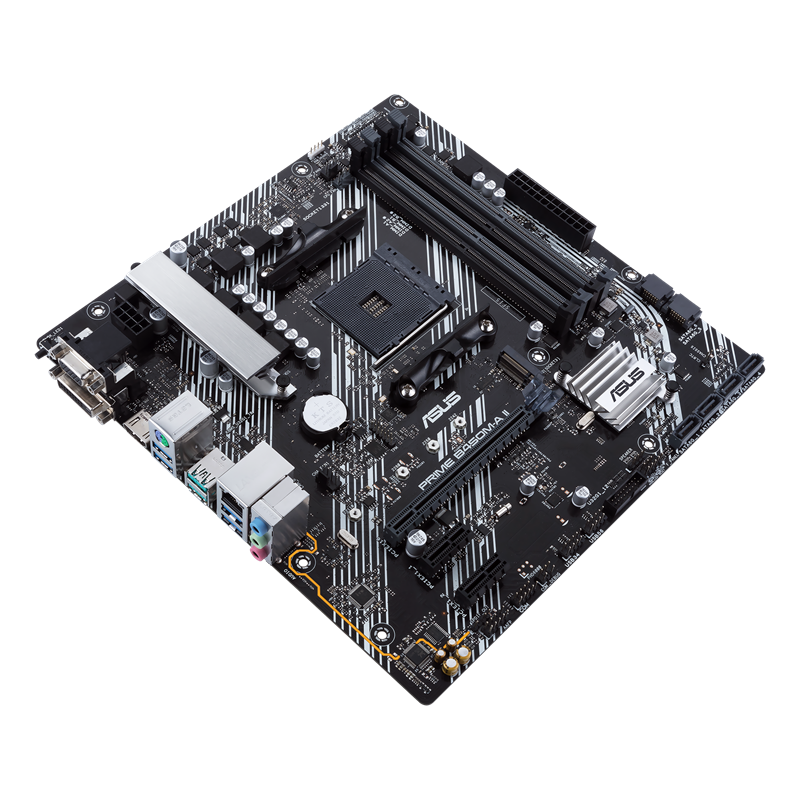

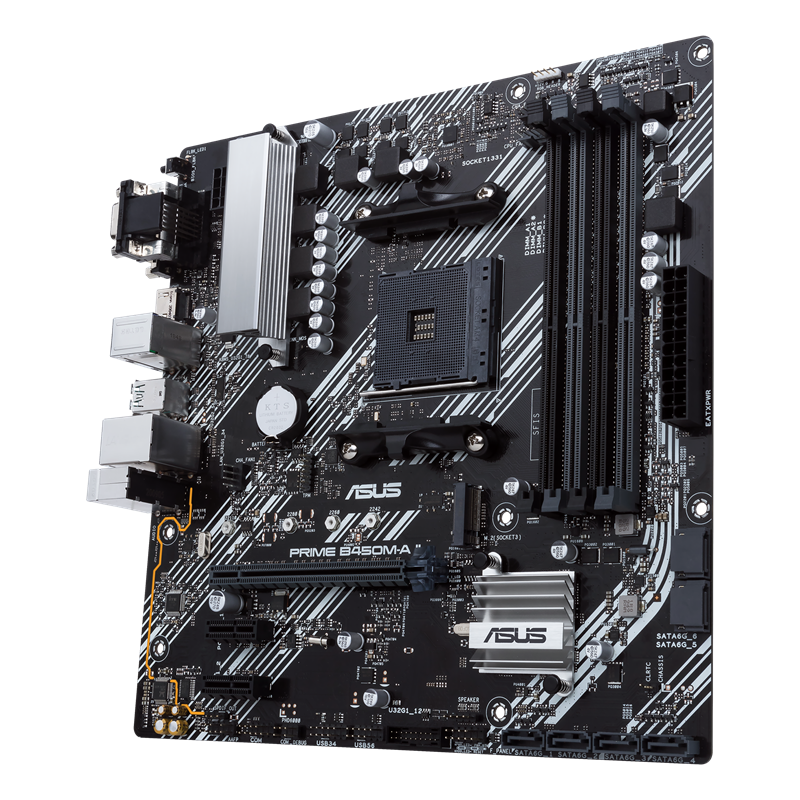

PRIME B450M-A II
CPU
AMD AM4 Socket for AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors x,x Refer to www.asus.com for CPU support list
Chipset
AMD B450
Memoria
4 x DIMM, Max. 128GB, DDR4 4400(O.C)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory x,3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors,x The maximum memory frequency supported varies by processor.,Dual Channel Memory Architecture,ECC Memory (ECC mode) support varies by CPU.,x Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Gráficos
1 x HDMI port,Integrated Graphics in the 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors x,xGraphics specifications may vary between CPU types.
Slots de Expansión
1 x PCIe 3.0 x16 (x4 mode),3rd/2nd/1st Gen AMD Ryzen Processors,AMD Athlon with Radeon Vega Graphics Processors,AMD B450 chipset,2 x PCIe 2.0 x1,1 x PCIe 3.0 x16 (x16 mode),1 x PCIe 3.0 x16 (x8 mode)
Almacenamiento
Total supports 1 x M.2 slot(s) and 6 x SATA 6Gb/s ports,3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics : x1,Athlon with Radeon Vega Graphics Processors : x1,3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors : ,1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA mode),2 x SATA 6Gb/s port(s),,AMD B450 chipset : ,4 x SATA 6Gb/s port(s),,1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA PCIE 3.0 x 4 mode),Support Raid 0, 1, 10
LAN
ASUS LANGuard,Realtek® RTL8111H
Audio
- Premium audio capacitors,Realtek ALC887/8977.1-Channel High Definition Audio CODEC x,- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback,- LED-illuminated design,- Audio Shielding,- Dedicated audio PCB layers,Audio Feature :,x Choose the chassis with HD audio module in front panel to support 8-channel audio output.
Puertos USB
2 x USB 3.2 Gen 2 (up to 10Gbps) port(s)(2 x Type-A),Front USB Port ( Total 6 ),Rear USB Port ( Total 6 ),4 x USB 3.2 Gen 1 port(s)(4 x Type-A),2 x USB 3.2 Gen 1 port(s),4 x USB 2.0 port(s)
Software Features
ASUS Exclusive Software
Armoury Crate
- AURA Creator
- AURA Sync
AI Suite 3
- Performance and Power Saving Utility
TurboV EVO
EPU
DIGI+ VRM
Fan Xpert 2+
PC Cleaner
- EZ update
- System Information
ASUS CPU-Z
AI Charger
ASUS EZ Installer
DAEMON Tools
Norton Anti-virus software (Free Trial for 60 days)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
ASUS Special Features
ASUS 5X PROTECTION III
- ASUS DIGI+ VRM
- ASUS LANGuard
- ASUS Overvoltage Protection
- ASUS SafeSlot Core
- ASUS Stainless-Steel Back I/O
ASUS Q-Design
- ASUS Q-DIMM
- ASUS Q-Slot
ASUS Thermal Solution
- Aluminum heatsink design
ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
AURA Sync
- AURA RGB header
ASUS Lighting Control

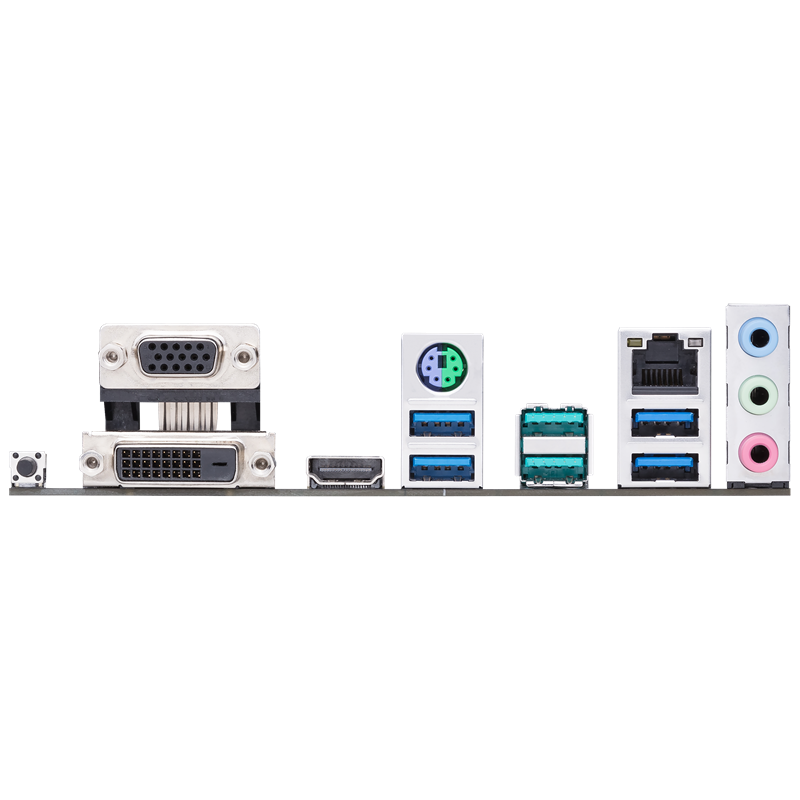

Puertos I/O Traseros
2 x USB 3.2 Gen 2 (teal blue) (2 x Type-A),1 x BIOS FlashBack Button(s),4 x USB 3.2 Gen 1 (blue) Type-A,1 x DVI-D,1 x D-Sub,3 x Audio jack(s),1 x PS/2 keyboard/mouse combo port(s),1 x HDMI,1 x LAN (RJ45) port(s)
Internal I/O
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) (19-pin),1 x RGB Header,2 x Chassis Fan connector(s) (2 x 4-pin),1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA PCIE 3.0 x 4 mode),6 x SATA 6Gb/s connector(s),1 x Speaker connector,1 x CPU Fan connector(s) (1 x 4-pin),2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s),1 x SPI TPM header,1 x COM port(s) connector(s),1 x S/PDIF out header(s),1 x 24-pin EATX Power connector(s),1 x 8-pin ATX 12V Power connector(s),1 x Front panel audio connector(s) (AAFP),1 x System panel(s),1 x Clear CMOS jumper(s),1 x COM port header

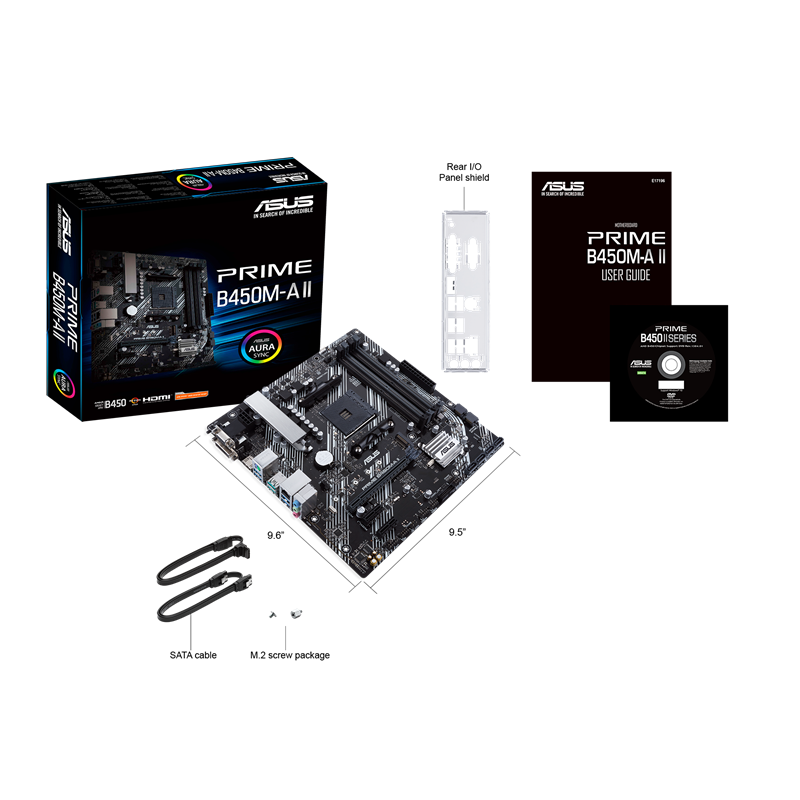

Accessorios
User´s manual,I/O Shield,2 x SATA 6Gb/s cable(s),1 x M.2 Screw Package,1 x Supporting DVD
BIOS
256 Mb Flash ROM, UEFI AMI BIOS
Sistema Operativo
Windows® 7 64-bit x2,Windows® 10 64-bit
Factor de forma
9.6 inch x 9.5 inch ( 24.4 cm x 24 cm ),mATX Form Factor
Nota
1xThe M.2 slot shares bandwidth with the SATA6G_5/6 ports, and therefore the SATA6G_5/6 ports cannot be used when an M.2 device is installed.
2xTo support Windows 7 64-bit, please install an AMD Ryzen 2nd Generation or Ryzen 1st Generation Processor.
