- Model

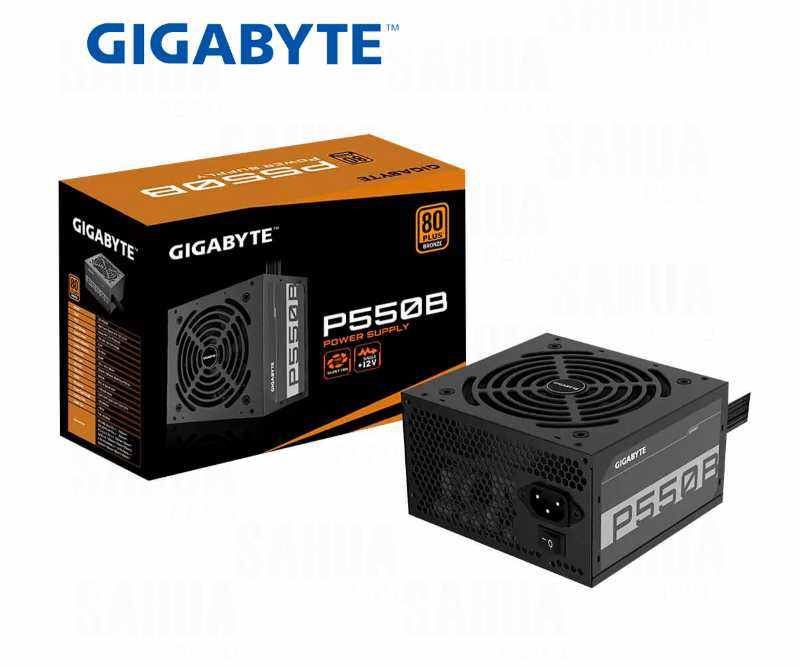

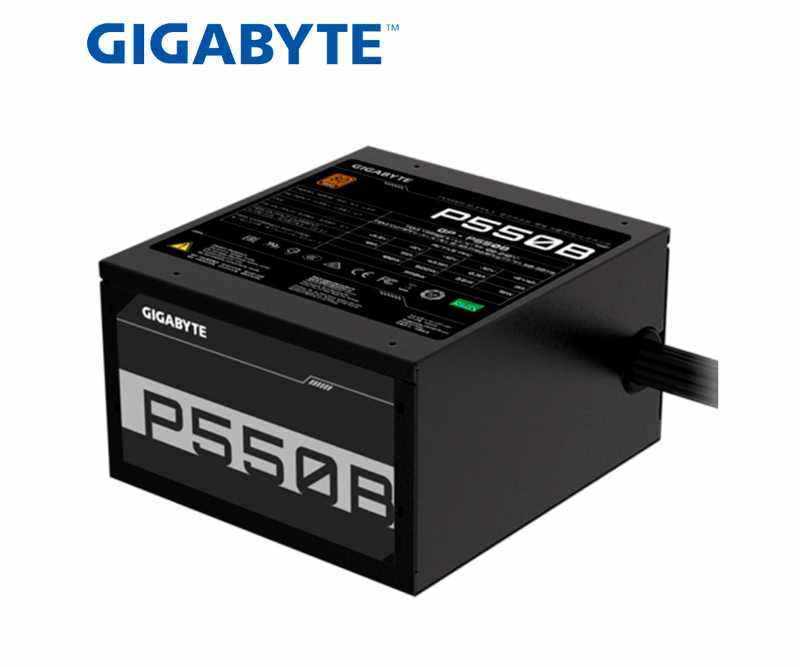

P550B
Type
Intel Form Factor ATX 12V v2.31
PFC
Active PFC(0.9 typical)
Input Voltage
100-240 Vac(full range)
Input Current
8-4 A
Input Frequency
60-50 Hz
Output Capacity
550W
Dimension
150 x 140 x 86 mm
Fan Type
120mm Hydraulic Bearing (HYB) Fan
80 PLUS
Bronze
Efficiency
85% at typical load
MTBF
100,000 hours
Protection
OVP/OPP/SCP/UVP/OCP/OTP
Power Good Signal
100-500ms
Hold Up Time
16ms
Cable Type
Flat, All black
Connectors
ATX/MB 20+4 Pin x 1 : 550mmx1
CPU/EPS 4+4 Pin x 1 : 600mmx1
PCI-e 6+2 Pin x 2 : 550mm+150mmx1
SATA x 6 : 500mm+120mm+120mmx2
4 Pin Peripheral x 3 + 4-Pin floppy x 1 : 500mm+120mm+120mm+120mmx1
